Chronology of hydraulic vulnerability in trunk wood of conifer trees with and without symptoms of top dieback


There is evidence that recently occurring top dieback of Norway spruce (Piceaabies(L.) Karst.) treesin southern Norway is associated with drought stress. We comparedfunctional wood traits of20 healthy looking trees and 20 trees with visual signs of top dieback. SilviScan technology was applied to measure cell dimensions (lumen and cell wall thickness) in a selected set of trunk wood specimens where vulnerability to cavitation (P50) datawere available. The conduit wall reinforcement ((t/b)²) was a good proxy for P50. Cell dimensions were measured on wood cores of all 40 trees; theoretical vulnerability of single annual rings could bethus estimated. Declining trees tended to have lower (t/b)² before and during a period of water deficit (difference between precipitation and potential evapotranspiration)that lasted from 2004 to 2006. The results are discussed with respect to genetic predisposition.


In southern Norway, recently occurring top dieback in 40-50 years old forest stands of Norway spruce (Piceaabies(L.) Karst.) is thought to be associated with climatic extremes (Hentschel et al. 2014). In this region, the period between 2004 and 2006 was characterized by high water deficits during the growing season, estimated as the difference between the cumulative precipitation and the potential evapotranspiration (see Fig 1 in Hentschel et al. 2014). During this period, trees with symptoms of top dieback (Fig. 1) showed lower intrinsic water-use efficiency that is associated with increased stomatal conductance (Hentschel et al. 2014) and produced wood with lower density, indicating higher vulnerability to cavitation (Rosner et al. 2014).Functional traits for estimating hydraulic vulnerability gain increasing importance as screening tools because hydraulic experiments are labour intensive or prone to errors (Cochard et al. 2013). In this study,weextend an existing dataset (Rosner et al. 2014) with tree samples and derivefunctional traitsfor hydraulic vulnerability from tracheid dimensions assessed by SilviScan technology(Evans 1994). Thereafter wedocument how these proxieschanged over the years in20 healthy looking and in 20 declining trees in order to learn more about the predisposing factors for top dieback in Norway spruce in southern Norway.

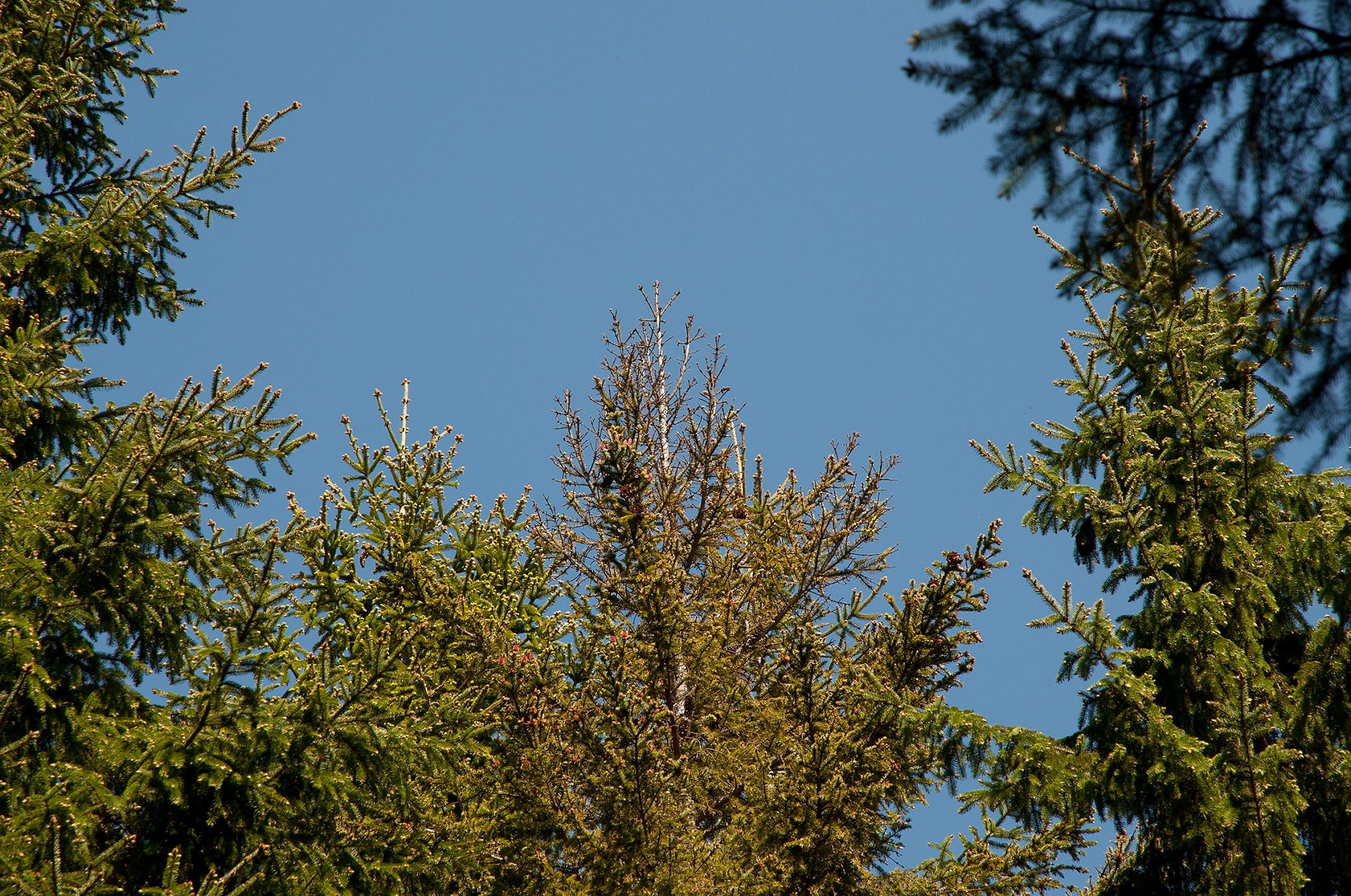

Figure 1: Norway spruce tree with symptoms of top dieback (middle) among healthy looking trees. Photo: Isabella Børja

Materials and Methods

Ten healthy looking trees and ten trees with visual signs of top dieback such as dry tops and needle yellowing in the top (Fig. 1) were selected in Sande (Lat. (N) 59°35’, Long. (E) 10°12’)and Hoxmark (Lat. (N) 59°40’, Long. (E) 10°45’), respectively (n = 40 trees). For a previous study (Rosner et al. 2014), 24 trees (6 symptomatic and 6 non-symptomatic trees per site) were harvested in order to assess vulnerability to cavitation (P50) of the trunk wood by means of the pressure collar technique (Domec and Gartner 2002). Wood cores taken at breast height and small wood beams, where P50data were available (Rosner et al. 2014), were analyzed with SilviScan technology. Wood density, radial- and tangential tracheid diameters and wall thickness were thus available in 25 µm radial measurement steps. For each single annual ring, a conduit wall reinforcement, i.e. wall (t) to lumen (b) ratio, was calculated as (t/b)² (Hacke et al. 2001). The conduit wall reinforcementwas not derived from the whole ring dataset but from wood with a density < 700 kg/m³ that comprises early wood and transition wood but not latewood (Dalla-Salda et al. 2014).


P50 was strongly related to conduit wall reinforcement (r2 = 0.71, P < 0.001, n = 19); (t/b)² could be thus used as good proxy for vulnerability to cavitation (Fig. 2).

After 2005, height and radial incrementsshowed different trends in trees with symptoms of top dieback compared to healthy looking trees (Figs. 3a-b). Before 2004, symptomatic trees investigated in our study produced slightly higher radial increments than healthy looking trees. The differences were however not significant.After 1999, (t/b)²was lower in almost all annual rings of symptomatic trees (Fig. 3c); thus before, during and after a period with water deficit (2004 – 2006). In 2000, the difference was statistically significant. Steadily increasing (t/b)² after 2006, resulting in a higher (t/b)² of symptomatic trees in 2010, can be interpreted as a reaction to stress.

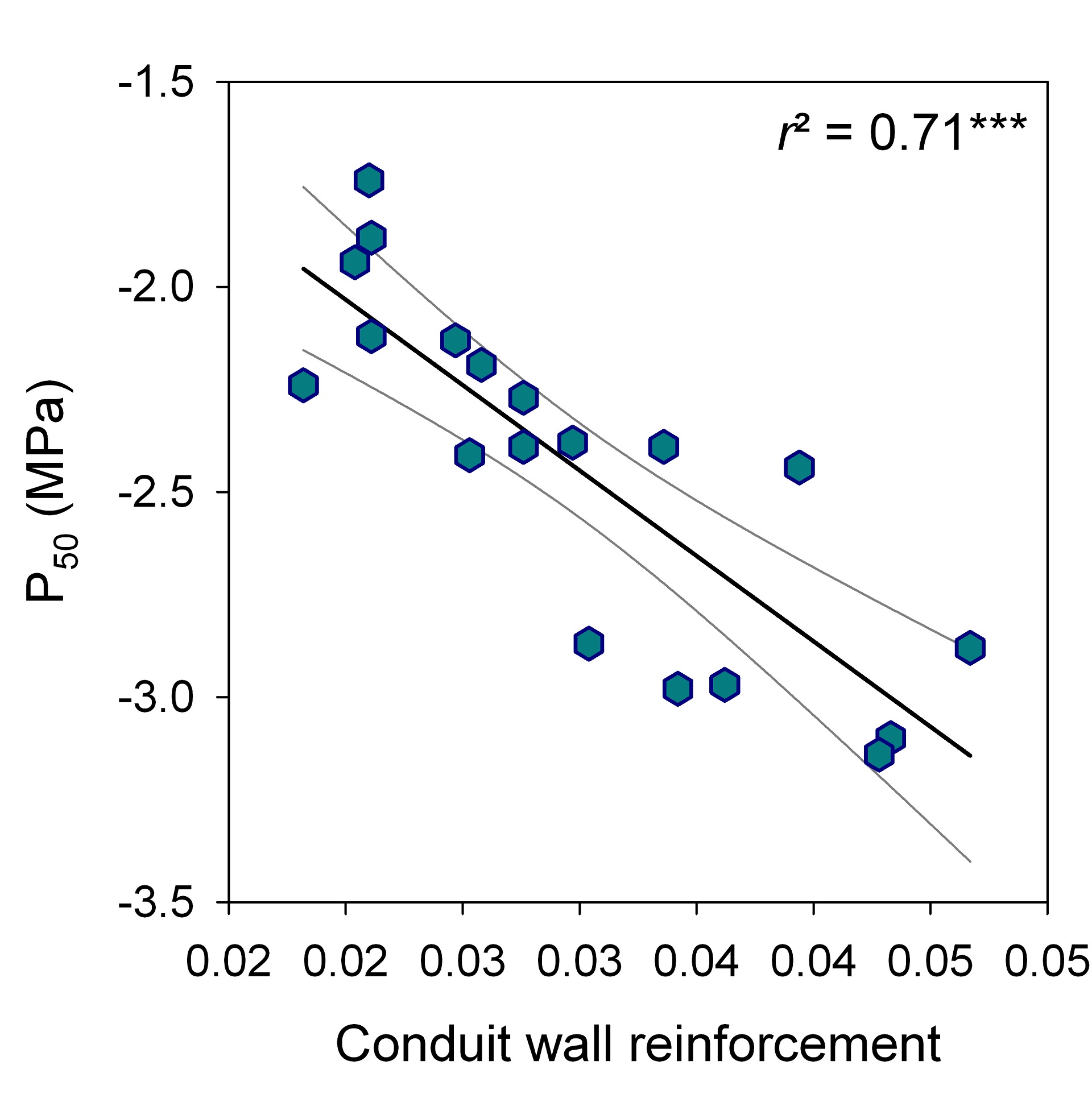

Figure 2: Linear relationship (regression line and 95% confidence interval) between conduit wall reinforcement (t/b)² and vulnerability to cavitation (P50).


Producing wood with lower (t/b)² during periods of sufficient water supply can be a risky investment regarding hydraulic safety for Norway spruce trees. This“strategy” can lead to lower survival prospects under the impact of an extreme sudden drought because this species uses at least ten annual rings for axial water transport (Bertaud and Holmbom 2004). Due to irreversible embolism induced by drought stress (Choat et al. 2015), the hydraulic conductivity might get lost in more vulnerable annual rings. This can lead to an impairment of the water supply of the crown andthus to reduced growth. In addition, trees with top dieback tended to spend water; they had a predisposition to less strict stomatal control. Trees with both characteristics can most likely not cope with several drought periods during subsequent years (Hentschel et al. 2014).

Proxies for P50 can be useful tools to screen for provenances or individuals with higher hydraulic safety (Dalla-Salda et al. 2009). Published relationships between t/b ratio and P50 are much strongerwithin a given species (e.g. Domec et al. 2009) than across conifer species (e.g. Bouche et al. 2014). Strong relationship between t/b ratio (thus (t/b)²) and P50within a tree of a given species exist due to the extremechangesof P50and thus t/b or tracheid lumen diameters (Anfodillo et al. 2013) along a conifer trunk and the variability in P50between different plant organs (Domec et al. 2009). This implies smart sampling strategies: in order to perform reliable comparisons between individuals of the same species, sapwood for hydraulic testing or for determination of functional proxies shall be collected from a given plant organ and from annual rings of comparable age (i.e. juvenile versus mature) at the same (relative) tree height.

Wood quality traits such as density (and most likely (t/b)²) are highly heritable in Norway spruce. Recently, Chen et al. (2014) found thatearly selection for wood density is highly effective from rings 6–7. Starting at that age, selecting individuals for higher hydraulic safety in trunk wood could be possible. However, trunkwood safety covers only one aspect of drought sensitivity related to hydraulic architecture (see Hacke et al. 2015) and selected trees must be tested for their hydraulic performance in field experiments. In species such as Norway spruce, wood density is genetically negatively correlated with growth (Rosner et al. 2014). Thus, when selecting Norway spruce trees for higher hydraulic safety and/or more strict stomatal control, reduction in growth ratemight have to be taken into account.

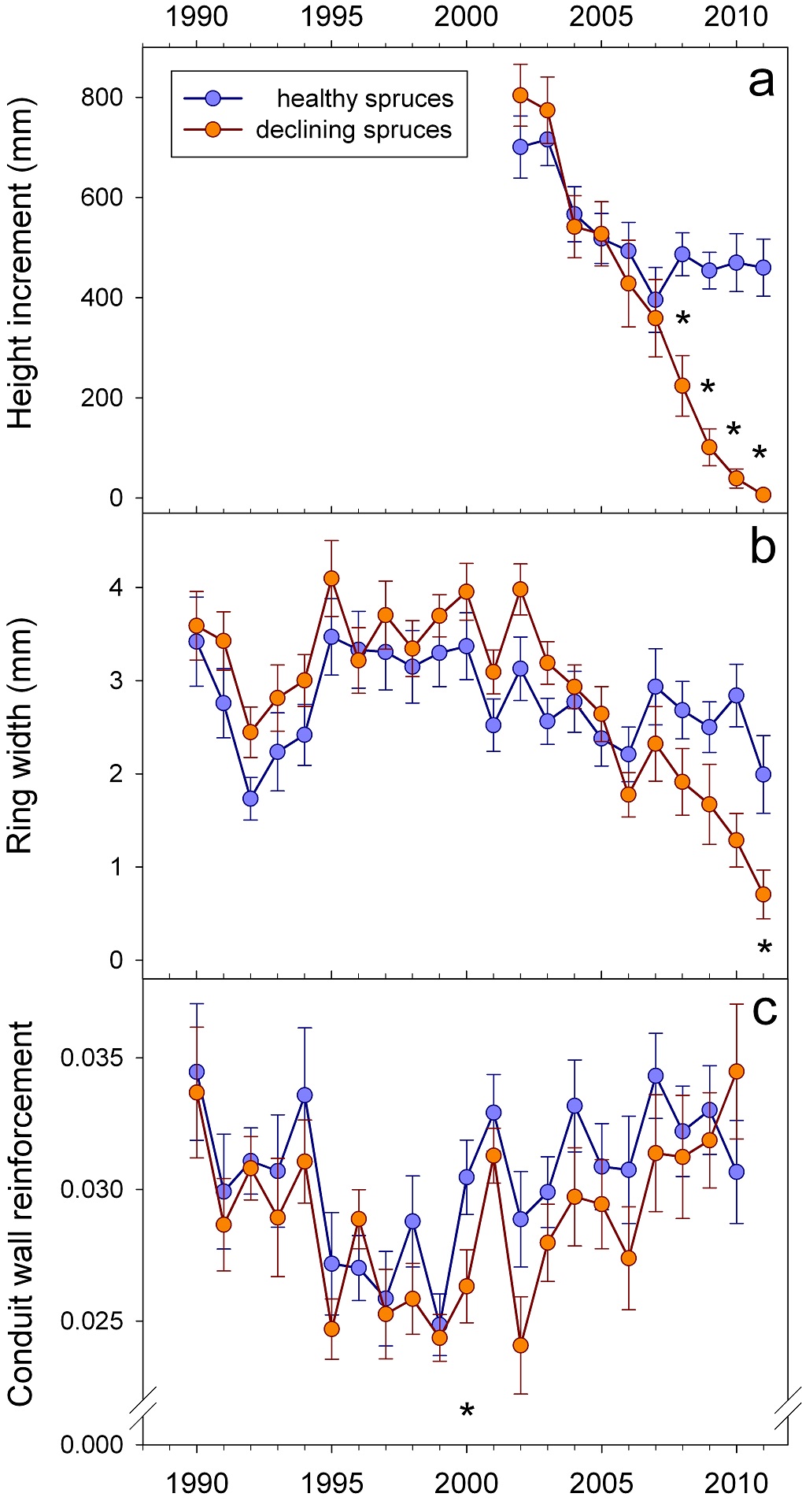

Figure 3: Time course of height increment (a), radial increment (b) and wall/lumen ratios of earlywood (c). Significant differences are indicated by “*”.

Acknowledgements : this study was financed by the Norwegian Research Council, by Skogtiltaksfondet, six regional funds in Norway (Fylkesmannen), by the Austrian Science Fund FWF (V146-B16) and by the CZ Ministry of Education (No. 6215648902). This work has been carried out under the framework of the COST FP1106 network STReESS.


  • Anfodillo T, Petit G, Crivellaro A. 2013. Axial conduit widening in woody species: a still neglected anatomical pattern. IAWA Journal34:352-364. doi:10.1163/22941932-00000030
  • Bertaud F, Holmbom B. 2004. Chemical composition of earlywood and latewood in Norway spruce heartwood, sapwood and transition zone wood.Wood Science and Technology 38: 245-256. doi:10.1007/s00226-004-0241-9
  • Bouche PS, Larter M, Domec J-C, Burlett R, Gasson P, Jansen S, Delzon S. 2014. A broad survey of hydraulic and mechanical safety in the xylem of conifers.Journal of Experimental Botany65: 4419-4431. doi:10.1093/jxb/eru218
  • Chen Z-Q, Gil MRG, Karlsson B, Lundqvist SO, Olsson L, Wu HX. 2014. Inheritance of growth and solid wood quality traits in a large Norway spruce population tested at two locations in southern Sweden. Tree Genetics & Genomes 10: 1291-1303. doi:10.1007/s11295-014-0761-x
  • Choat B., Brodersen CR, McElrone AR. 2015. Synchrotron X-ray microtomography of xylem embolism in Sequoia sempervirens saplings during cycles of drought and recovery. New Phytologist 205: 1095-1105. doi:10.1111/nph.13110
  • Cochard H, Badel E, Herbette S, Delzon S, Choat B, Jansen S. 2013. Methods for measuring plant vulnerability to cavitation: a critical review. Journal of Experimental Botany64: 4779–4791. doi:10.1093/jxb/ert193
  • Dalla-Salda G, Fernández ME, Sergent A-S, Rozenberg P, Badel E, Martinez-Meier A. 2014. Dynamics of cavitation in a Douglas-fir tree-ring: transition-wood, the lord of the ring? Journal of Plant Hydraulics 1: e-0005
  • Dalla-Salda G, Martinez-Meier A, Cochard H, Rozenberg P. 2009. Variation of wood density and hydraulic properties of Douglas-fir (Pseudotsugamenziesii (Mirb.) Franco) clones related to a heat and drought wave in France. Forest Ecology andManagemement257: 182-18
  • Domec J-C, Gartner BL. 2002. Age- and position-related changes in hydraulic versus mechanical dysfunction of xylem: inferring the design criteria for Douglas-fir wood structure. Tree Physiology 22: 91-104. doi:10.1093/treephys/22.2-3.91
  • Domec J-C, Warren JM, Meinzer FC, Lachenbruch B. 2009. Safety for xylem failure by implosion and air-seeding within roots, trunks and branches of young and old conifer trees. IAWA Journal. 30: 101-120. doi:10.1163/22941932-90000207
  • Evans R. 1994. Rapid measurement of the transverse dimensions of tracheids in radial wood sections from Pinusradiata.Holzforschung 48: 168–172. doi:10.1515/hfsg.1994.48.2.168
  • Hacke UG, Sperry JS, Pockman WT, Davis SD, McCulloh K. 2001. Trends in wood density and structure are linked to prevention of xylem implosion by negative pressure. Oecologia126: 457-461
  • Hacke UG, Lachenbruch B, Pitterman J, Mayr S, Domec J-C, Schulte PJ. 2015. The Hydraulic Architecture of Conifers. In Functional and Ecological Xylem Anatomy, U.G.Hacke, ed Springer International Publishing Switzerland, pp. 39-75. doi:10.1007/978-3-319-15783-2_2
  • Hentschel R, Rosner S, Kayler ZE, Andreassen K, Børja I, Solberg S, Tveito OE, Priesack E, Gessler A. 2014. Norway spruce physiological and anatomical predisposition to dieback.Forest Ecology and Management 322: 27-36. doi:10.1016/j.foreco.2014.03.007
  • Rosner S, Světlík J, Andreassen K, Børja I, Dalsgaard L, Evans R, Karlsson B, Tollefsrud MM, Solberg S. 2014. Wood density as a screening trait for drought sensitivity in Norway spruce.Canadian Journal of Forest Research 44: 154-161. doi:10.1139/cjfr-2013-0209


Sabine Rosner


Affiliation : BOKU Vienna, Gregor Mendel Str. 33, A-1180 Vienna, Austria

S. Luss

Affiliation : BOKU Vienna, Gregor Mendel Str. 33, A-1180 Vienna, Austria

J. Světlík

Affiliation : Mendel University in Brno, Centre MendelGlobe– Global climate change and managed ecosystems, Brno, 613 00, Zemědělská 3, Czech Republic

K. Andreassen

Affiliation : Norwegian Institute of Bioeconomy Research (NIBIO), P. O. Box 115, NO-1431 Ås, Norway

I. Børja

Affiliation : Norwegian Institute of Bioeconomy Research (NIBIO), P. O. Box 115, NO-1431 Ås, Norway

L. Dalsgaard

Affiliation : Norwegian Institute of Bioeconomy Research (NIBIO), P. O. Box 115, NO-1431 Ås, Norway

R. Evans

Affiliation : CSIRO Materials Science and Engineering, Private Bag 10, Clayton South, Victoria 3169, Australia

O. E. Tveito

Affiliation : Norwegian Meteorological Institute, HenrikMohnsplass 1, N-0313 Oslo, Norway

S. Solberg

Affiliation : Norwegian Institute of Bioeconomy Research (NIBIO), P. O. Box 115, NO-1431 Ås, Norway
